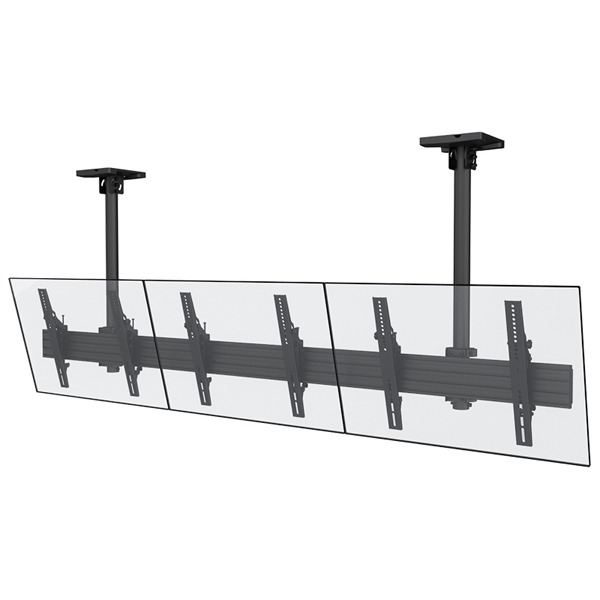

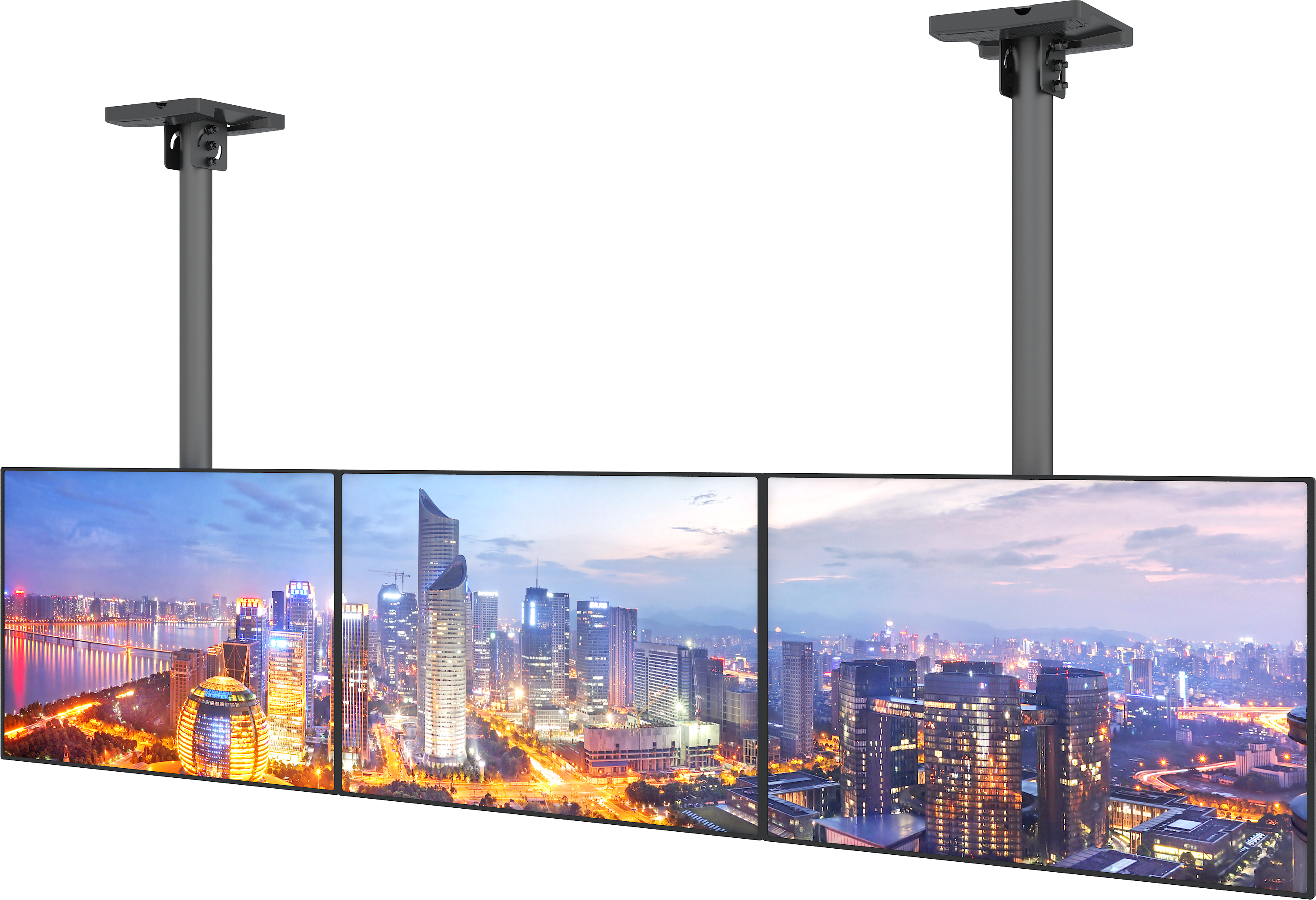

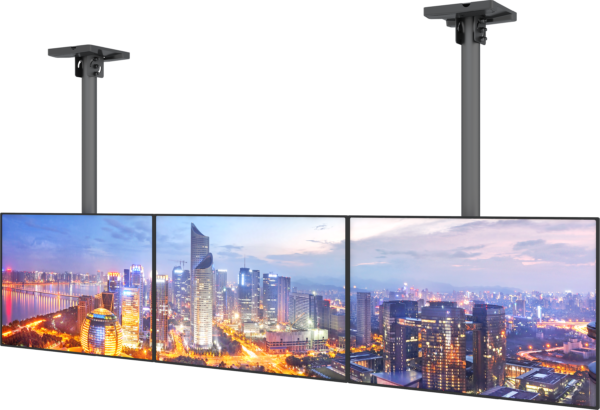

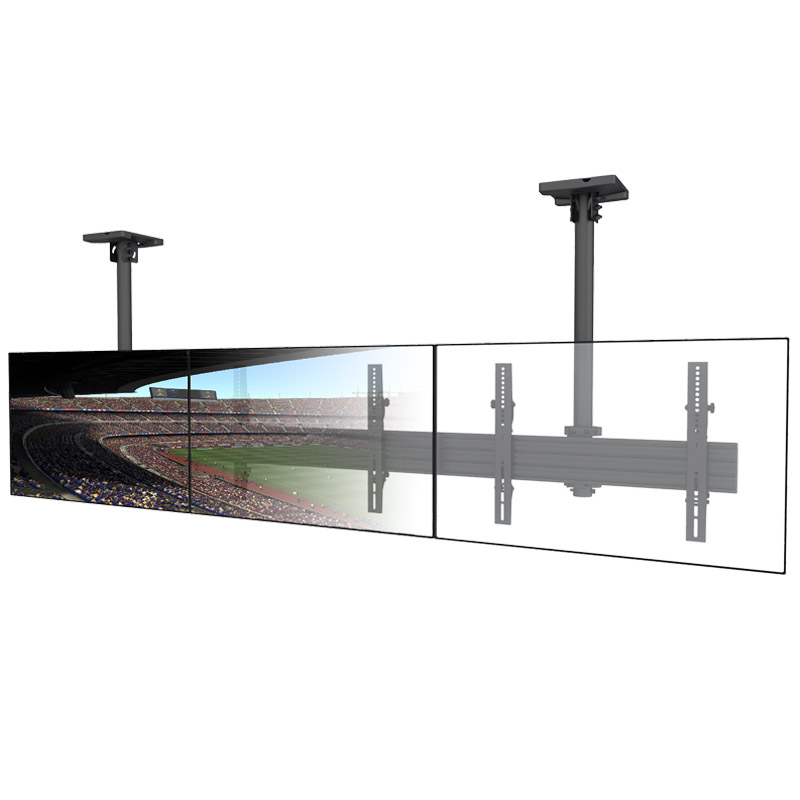

ACM3-800S Ceiling mount 3×1 layout single side 800mm pole kit

Modular Preselected Unit

  • Single side 3×1 layout screen pole mount kit
  • Support 32” to 65” Screen Size
  • Landscape or portrait orientation
  • Vesa: 100 * 100mm – 400 * 400mm (up to 65”) compatible
  • Max load capacit: 25kg per screen
  • kit net weight: 18 kg

The ACM3-800S is a part of Aurora Mounts modular preselected kit group.

It consists of the following contents:

AFC-800P x 2: 800mm steel pole

AFC-CP x 2: Ceiling pole mounting plate

AMB-AR680 x 1: 680mm aluminium rail

AMB-AR1000 x 2: 1000mm aluminium rail

AMB-REB x 2: rail extension bar kit

AMB-T400 x 3: 400mm tilt screen arm set

AFC-PC x 1: Pole clamp

AMB-RC x 2: Aluminium rail cap

Model No. ACM3-800S
Pole Length (mm) 800
Aluminum rail length (mm) 2680
Support screen size 32’’-65’’
Tilt 0-15°
Horizontal adjustment ±4°
Ceiling plat rotation 90°
Max load capacity (per screen) 25kg
Material Aluminum, steel & plastic
Furnishing Anodic, oxidation & powder black
